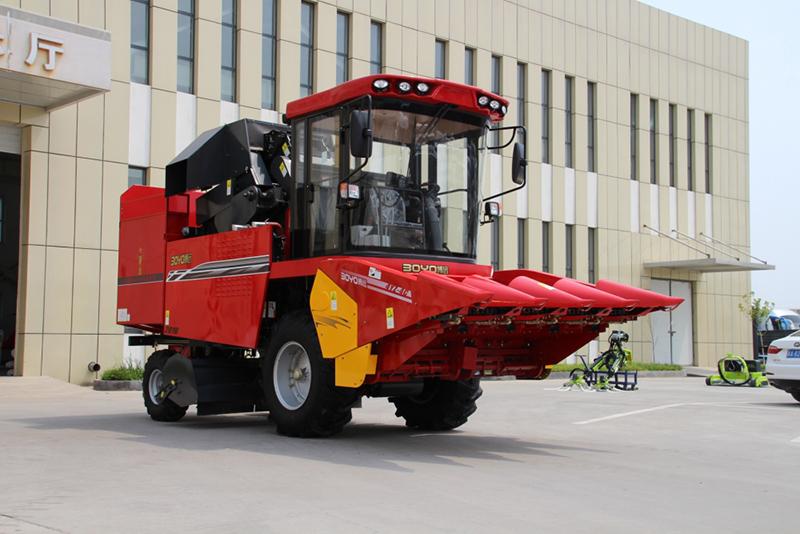

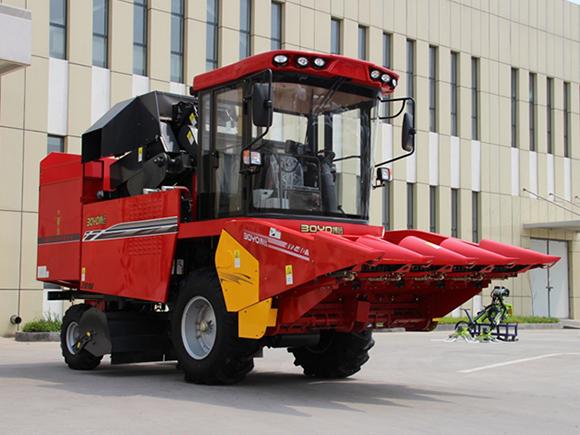

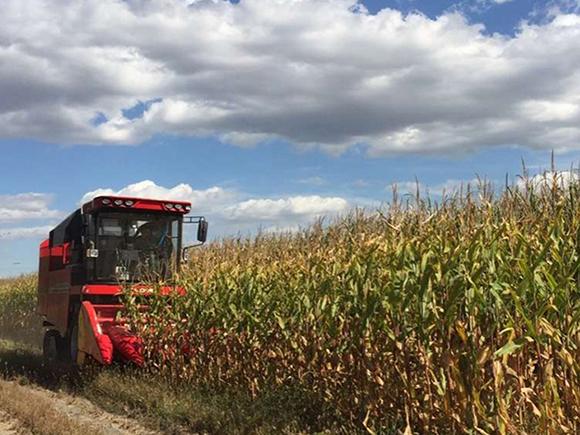

The 4YZ-4C type corn combine operates with four rows and the row space can be chosen within 530-550cm based on the planting conditions. Its working efficiency is 0.5-1 hectare per hour. And the raw space range can be customized following customer demands.
This type of corn harvester performs corn picking, peeling, corn collecting, sided unloading and straw chopping and returning to field at one time. If you want to harvest sweet corn without peeling, then you can configure the machine for only corn picking and collecting.
This corn combine can switch between walking mode and operating mode with one button to realize HP frequency conversion. Low HP is for walking and high HP is for harvesting, reducing overall oil consumption.
|Model of harvester||/||4YZ-4C|
|Type of construction||/||Self-propelled|
|Dimension of harvester||mm||7140*2550*3470|
|Weight of whole harvester||kg|
|Harvesting row number||row||4|
|Row space of cut header||mm||580|
|Row space of planting harvesting||mm||550-630|
|Min. ground clearance||mm||250|
|Rated rotation speed||r/min||2300|
|Oil consumption||Kg/ha||≤ 50|
|Main performance index||Corn seeds breakage rate||%||≤ 1%|
|Corn kernel loss rate||%||≤ 3%|
|Harvester reliability||%||≥ 90%|

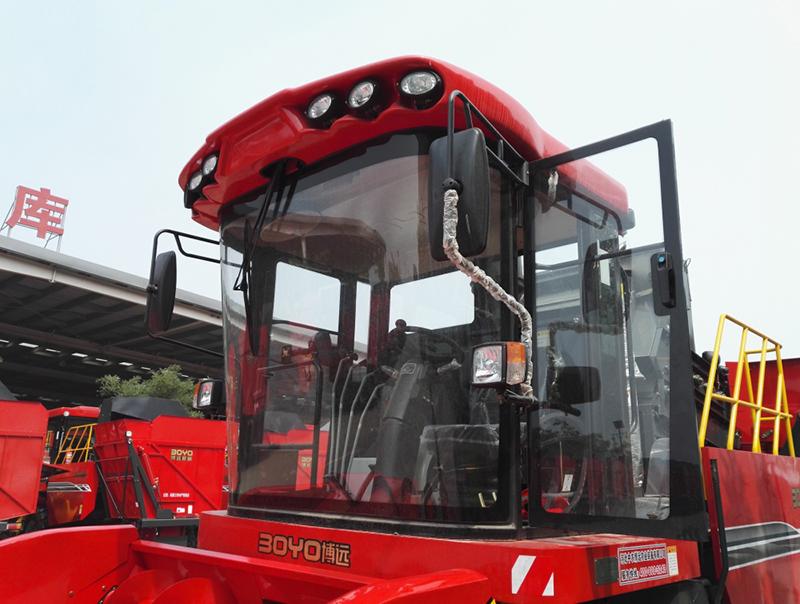

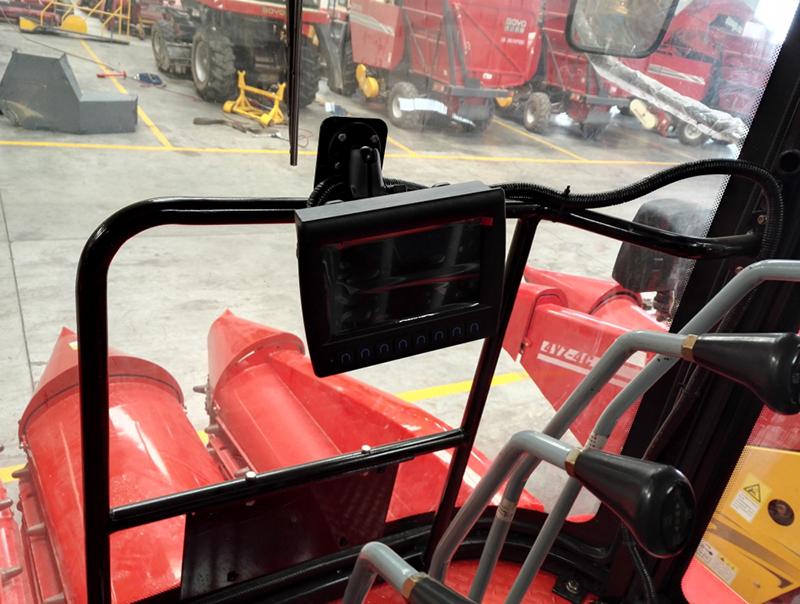

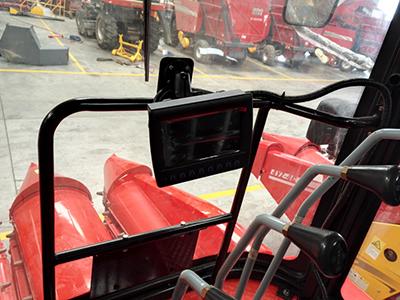

The steering wheel and seat are adjustable to suit different sized people. The combination of computer and power control module achieves the human-machine interaction, helping customers deal with circuit failure quickly.

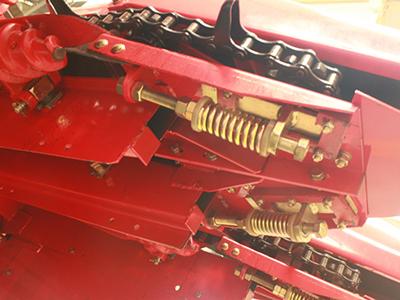

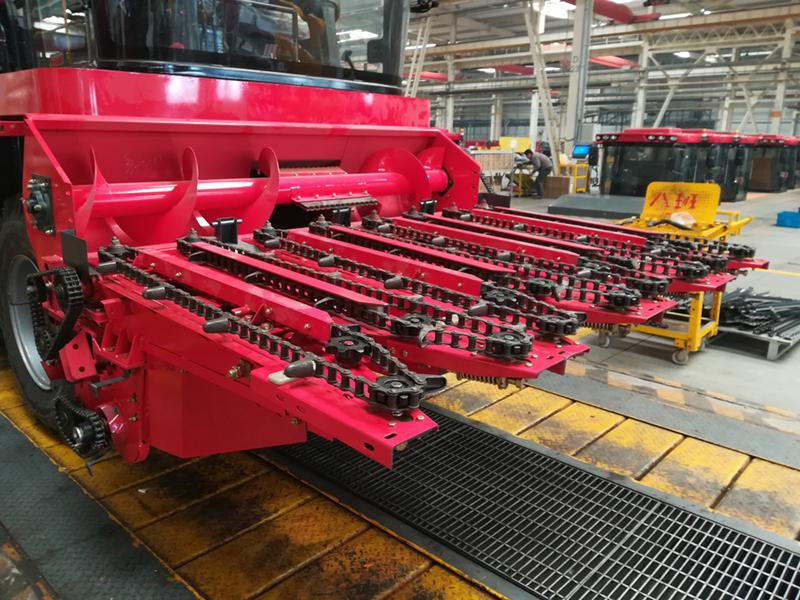

Corn head gathering chain

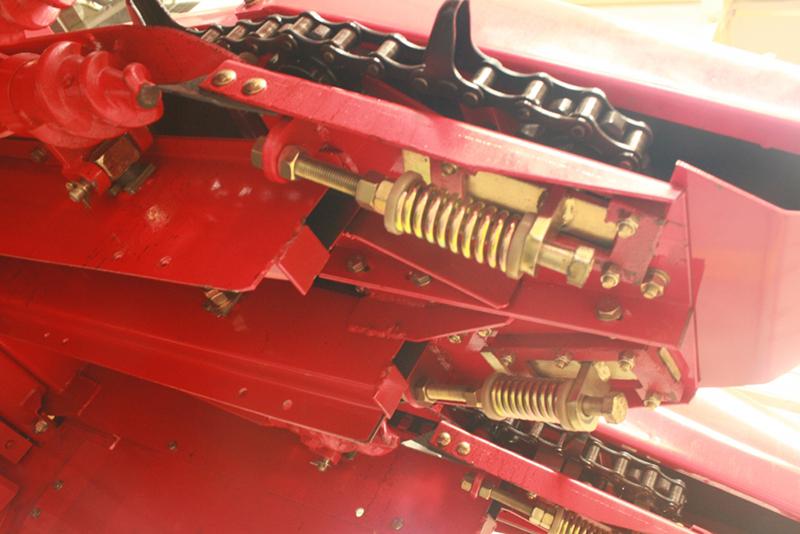

This gathering chain can tension automatically, which improves the chain’s life span and reduces the adjustment time. Adopting flotation lengthened crop divider, the lodged corn can also be harvested.

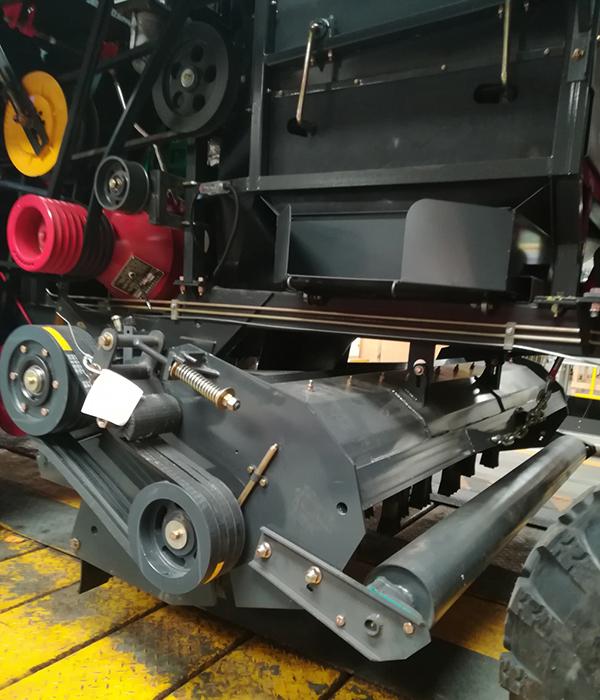

Grinding system Adopting a flail structure, the shredding effect is good and the stubble height is adjustable.

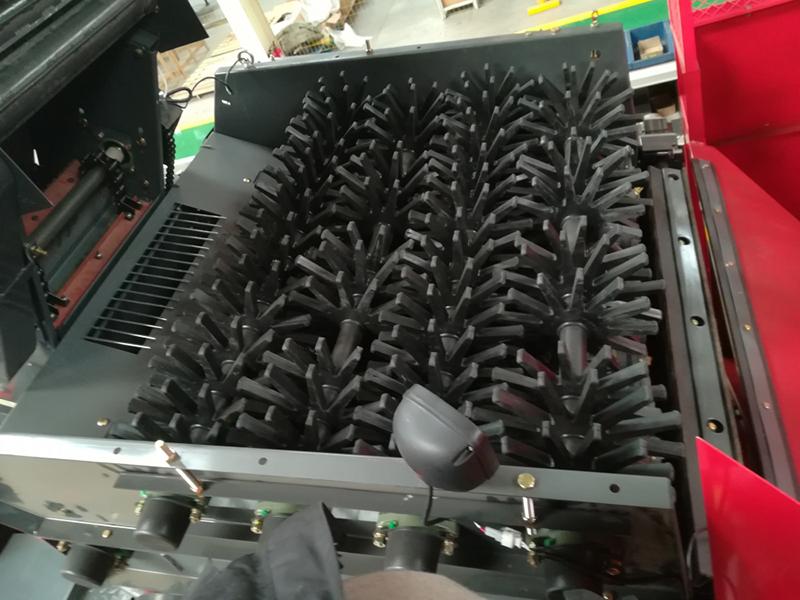

Peeling system The new peeler adopts the completely redesigned small spiral buffered peeling roller, which is made of tire rubber, offering high peeling efficiency and a low grain loss rate.

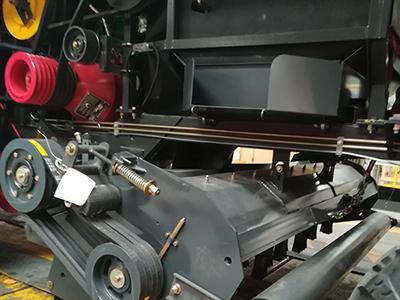

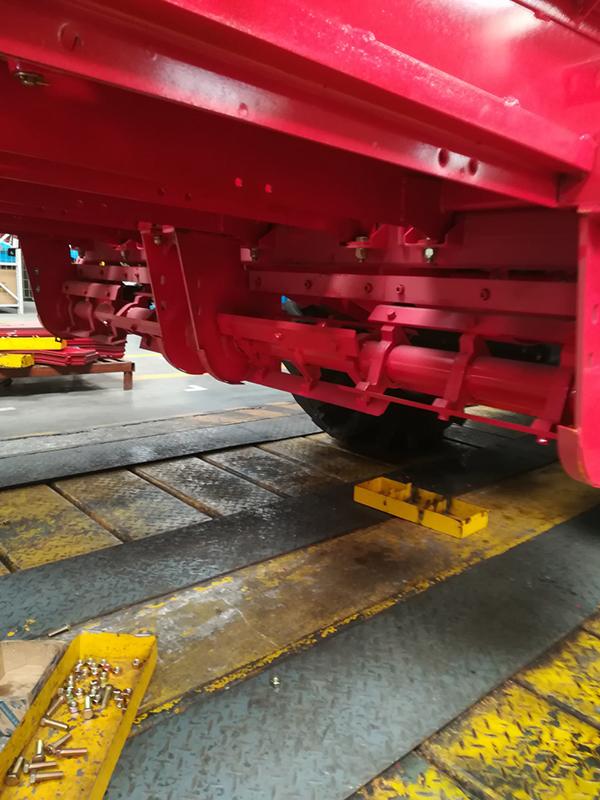

Cutter device With two sets of independent cutters, the straw is cut and then crushed, with a good crushing effect.
