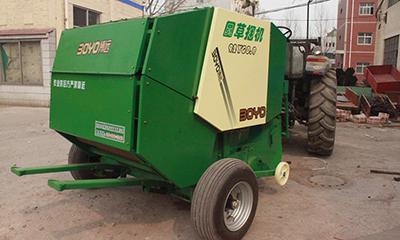

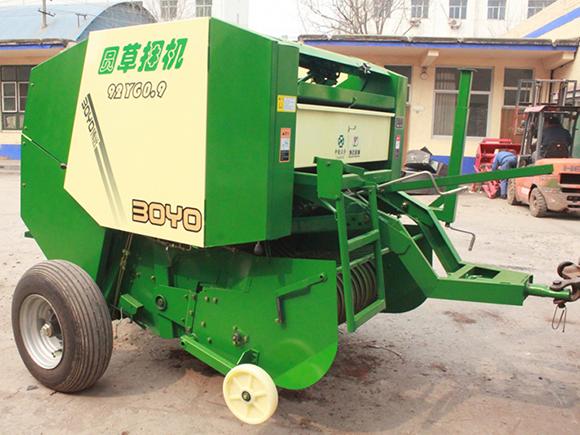

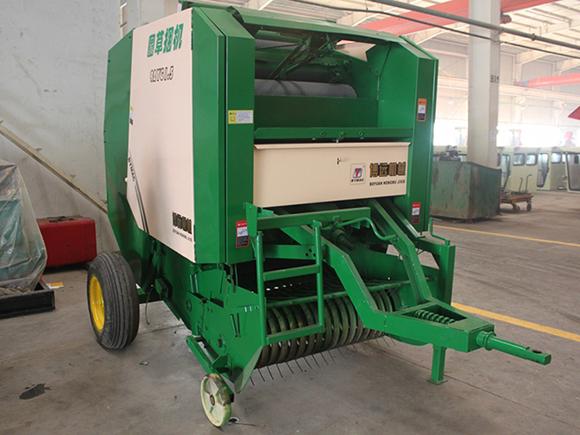

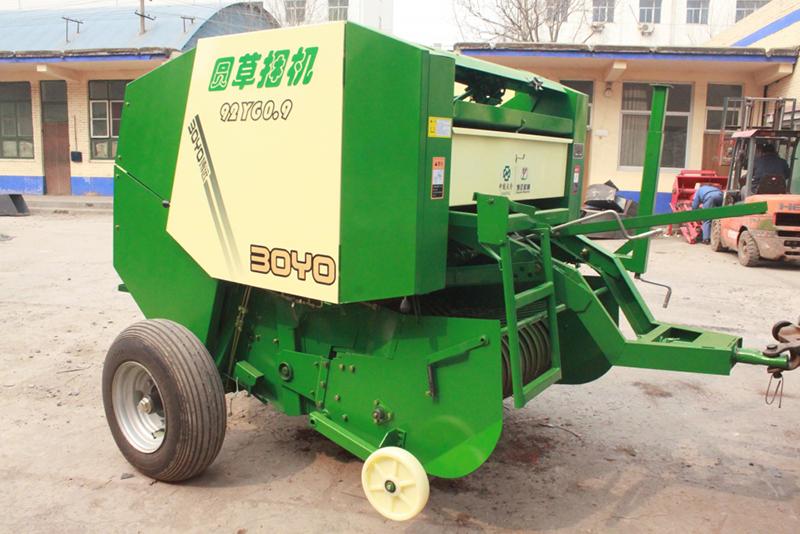

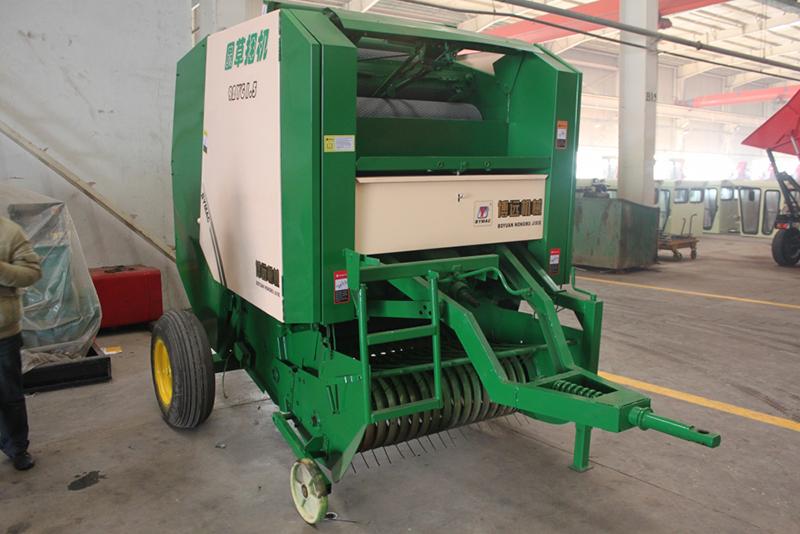

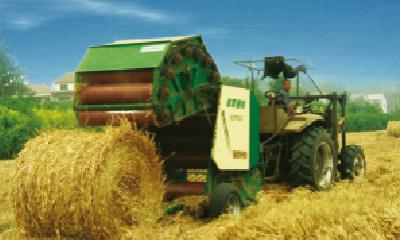

Round Baler
Application

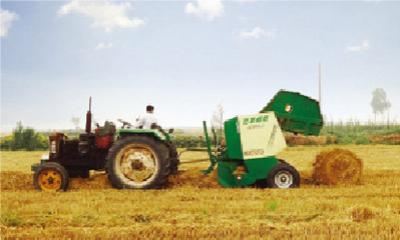

The round baler can complete the picking, bundling and unloading of the forage all at one time. It is widely used in the bundling of various native pastures and planting forages, as well as the bundling of reed, wheat straw and legume crops.
Parameters
| Item | Unit | 92YG 0.9 | 92YG 1.3 |
| Overall dimension(L×W×H) | mm | 3600x2330x2100 | 4600x2430x2430 |
| Overall weight | kg | 1500 | 2000 |
| Matched power (roller tractor) | Kw/hp | ≥28/(45) | ≥40/(55) |
| Output axle rotation | R/min | 540,720 | 540,720 |
| Working speed | Km/h | 3~5 | 3~5 |
| Working efficiency | Bale/h | 15~30 | 12~14 |
| Pickup width | mm | 1550 | 1600 |
| Knotter type | / | Mechanical arms | Mechanical arms |
| Pressing chamber width | mm | 1230 | 1370 |
| Diameter of roller | mm | 300 | 300 |
| Quantity of roller | pc | 11 | 15 |
| Diameter of bale | mm | 900 | 1300 |
| Length of bale | mm | 1230 | 1370 |
| Bale weight | kg | Stalk72 hay90 | stalk150 hay250 |
| Rope type | / | flax rope, plastic rope | flax rope, plastic rope |
| Rope quantity of every bale | Kg/bale | Flax rope: 0.08 plastic rope: 0.04 | Flax rope: 0.125 plastic rope: 0.078 |
| Wheel base | mm | 2040 | 2180 |
| | |
The composition of round baler

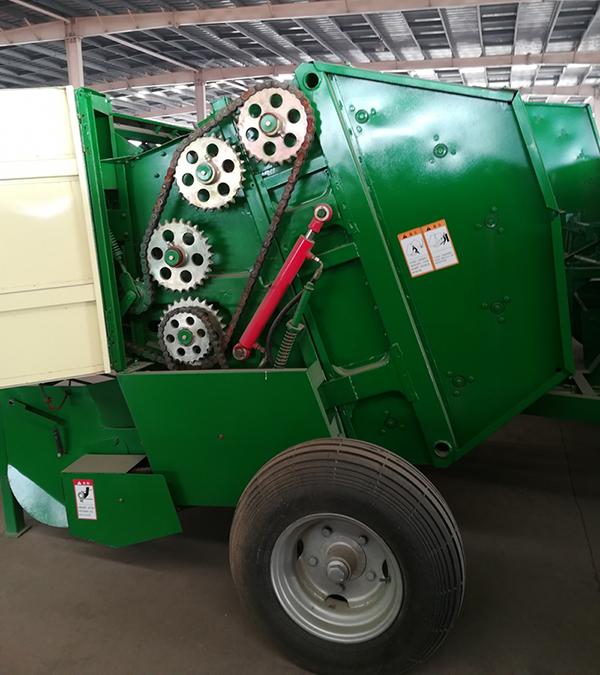

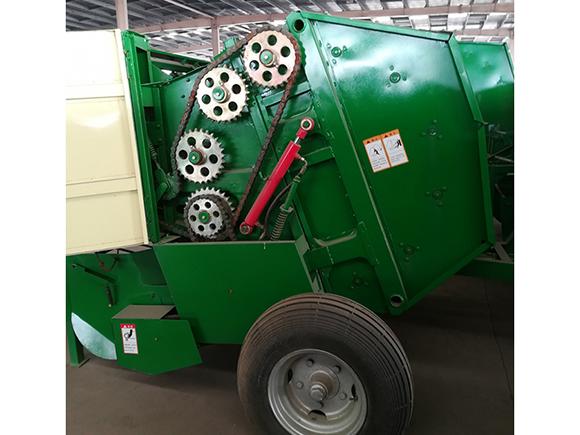

Hydraulic control, electrical control, mechanical drive, pickup, bundling and knotting mechanisms.
Features
- This round baler has a wide range of application, which is suited for the baling of native pasture, planting forage, reed, wheat straw and legume crops.
- The bale has good air permeability, suitable for convenient long-time storage and long distance transportation.
- This round baler has high automation, easy operation, high reliability, high production efficiency and low operating cost.
- Different machine models can be chosen based on the baling size.
