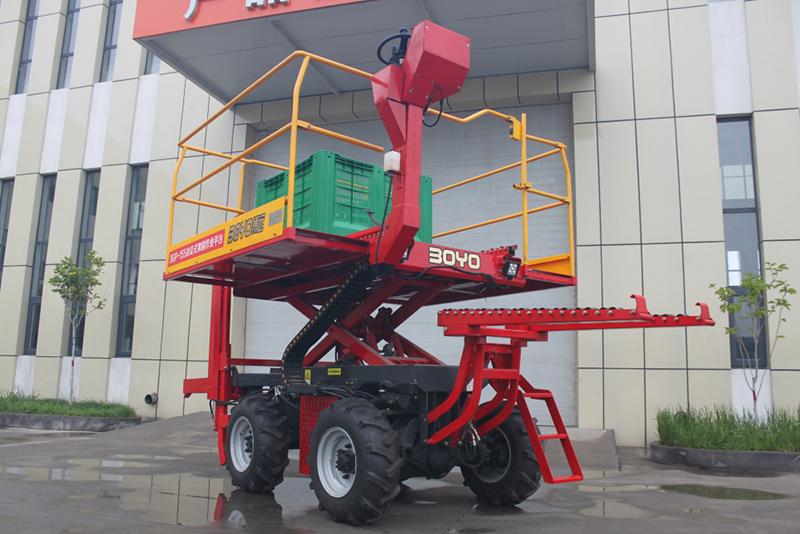

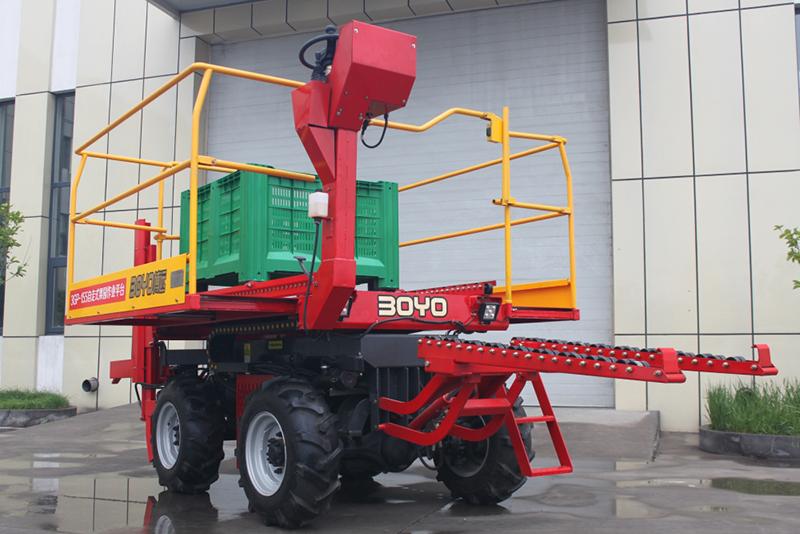

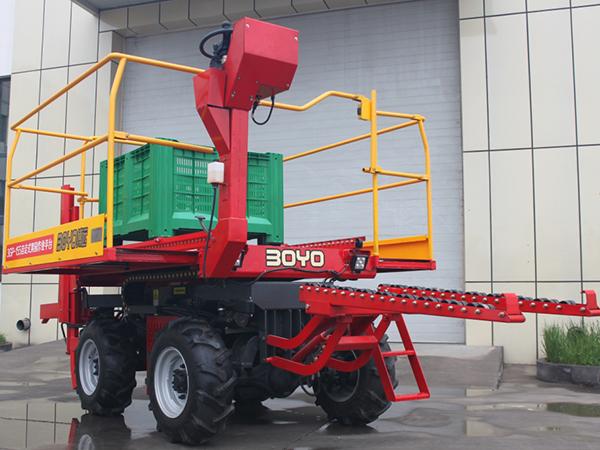

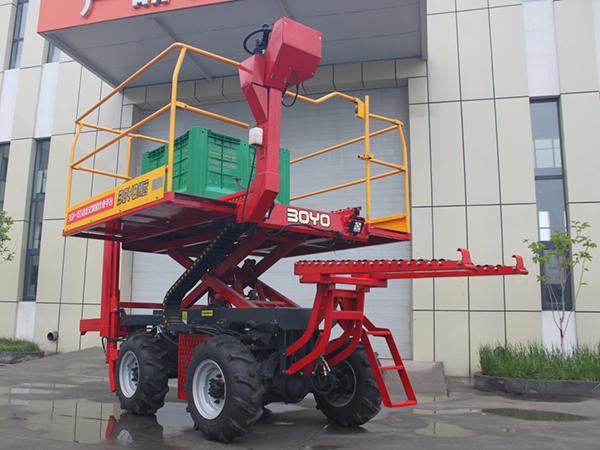

The 3GP-155 self-propelled extension orchard platform integrates a self-propelled harvesting auxiliary system and platform operation. The entire console is arranged above the machine frame, and the control system controls walking and steering of the walking device, as well as movement of the front and rear forks. In addition, it can also control the rise and fall of the control platform and movement of the horizontal extension platform.

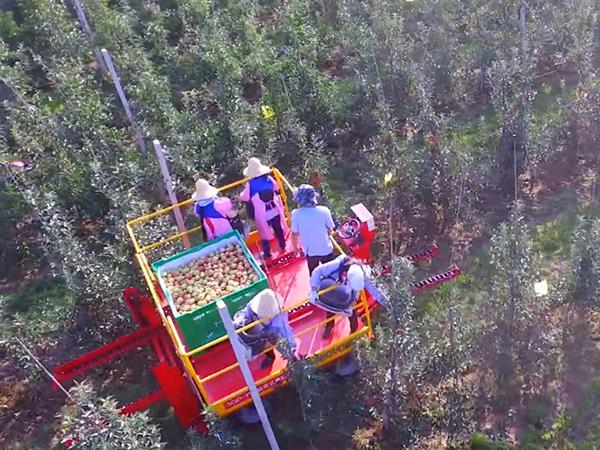

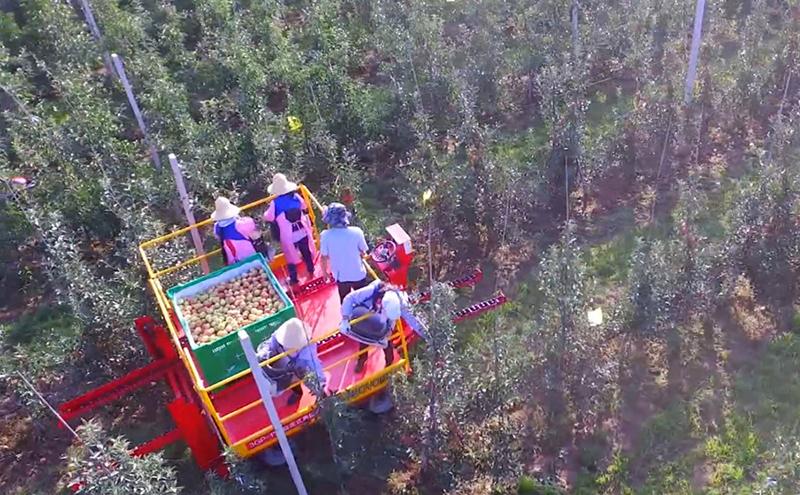

This orchard platform can easily achieve fruit tree pruning, and fruit picking during walking. During fruit picking, there is no need to manually transport the fruit box and other items up and down. This improves working efficiency and enhances operator safety, thus replacing the need for ladder usage in orchards, making it an ideal choice for modern orchards.
|Overall size (L×W×H)||mm||4100×1690×2420|
|Speed range||kg/h||Working speed: 0-4 walking speed:0-8|
|Min. turning radius||m||Left turn:3.5 Right turn: 4|
|Driven mode||Full hydraulic drive|
|Initial platform height (ground clearance)||mm||1150|
|Max. Lifting height (ground clearance)||mm||2350|
|Max. horizontal extension width||mm||3010|
|Max. total load||kg||800|
|Matching fruit box size (L×W×H)||mm||1130×1130×760|
