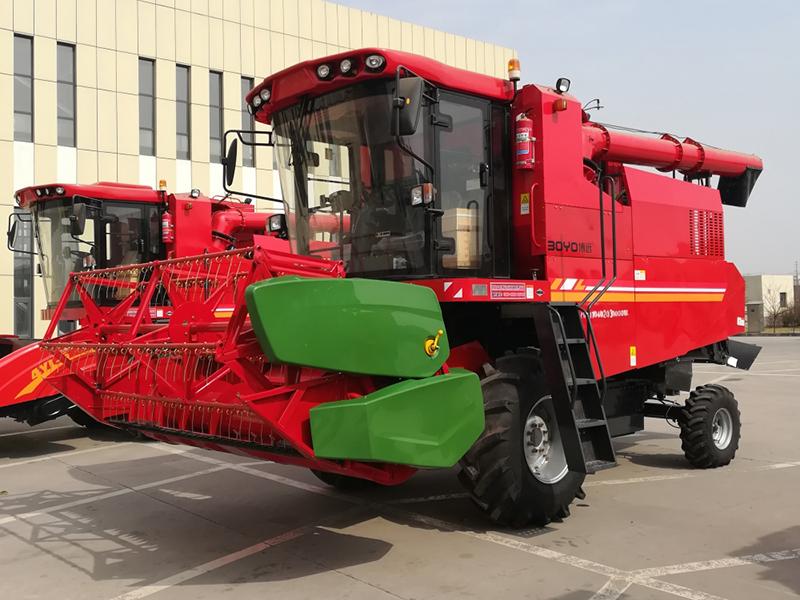

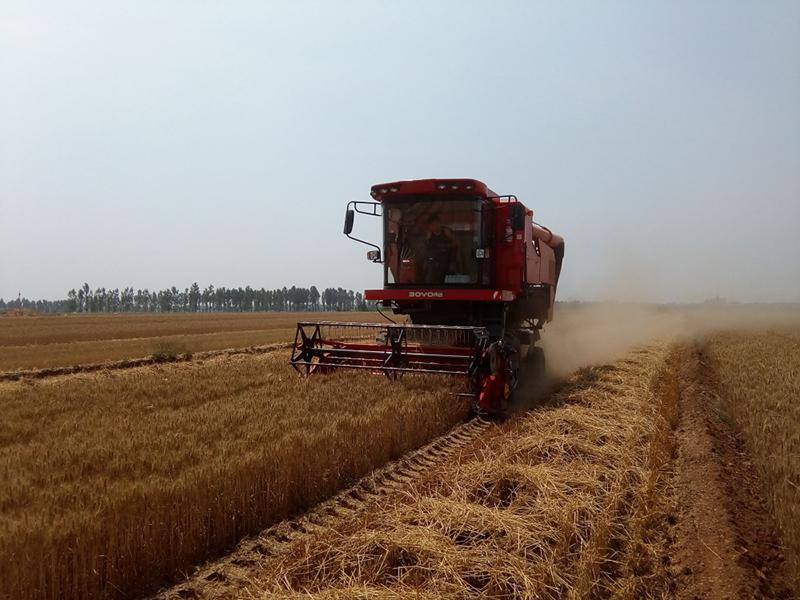

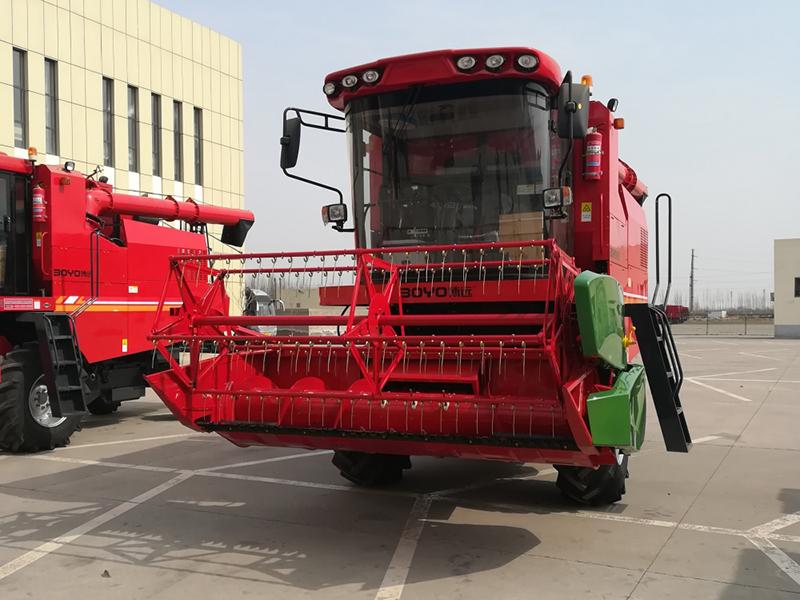

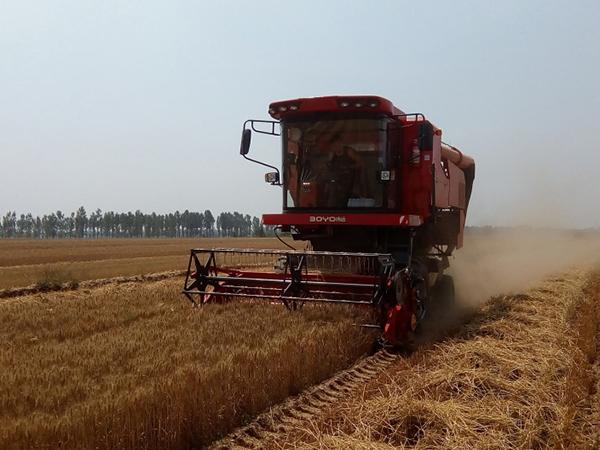

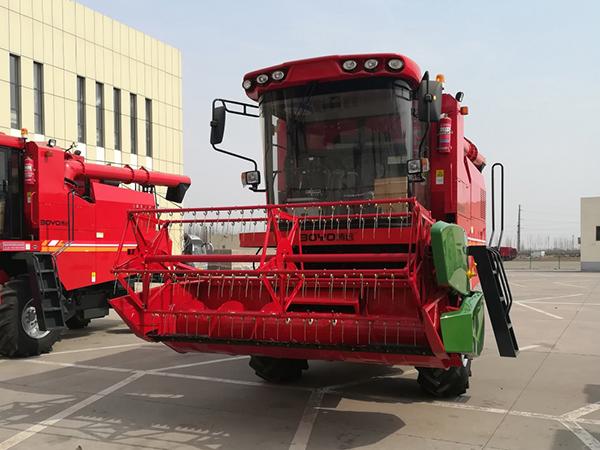

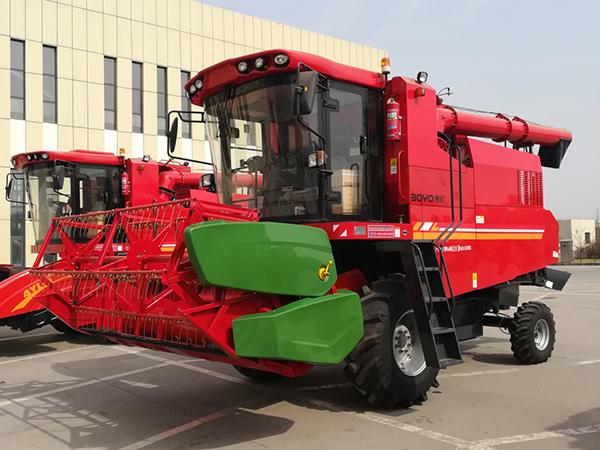

This grain combine harvesting machine is mainly used to harvest corn, soybeans, wheat, sorghum and other crops, and it can complete the threshing, unloading and stalk chopping all at once. The hourly harvesting area is 0.4-11 hectares.
This machine is a multifunctional harvester, which can harvest the corn by changing the header and parts. This realizes multiple functions on one machine to save the purchasing cost for customers.
| Item || Unit || 4LZ-6 Grain Harvester |
| Feeding Quantity || kg/s || 6.7 |
| Working width || mm || 2750 |
| Engine rated power || kw || 118 |
| Working efficiency || hO/h || 0.4-1 |
| Volume of grain tank || m3 || 2.8 |
| Unloading height || mm || 4200 |
| Weight || kg || 7360 |
| Overall size (L×W×H) || mm || 7360*3100*3720 |
| || || |

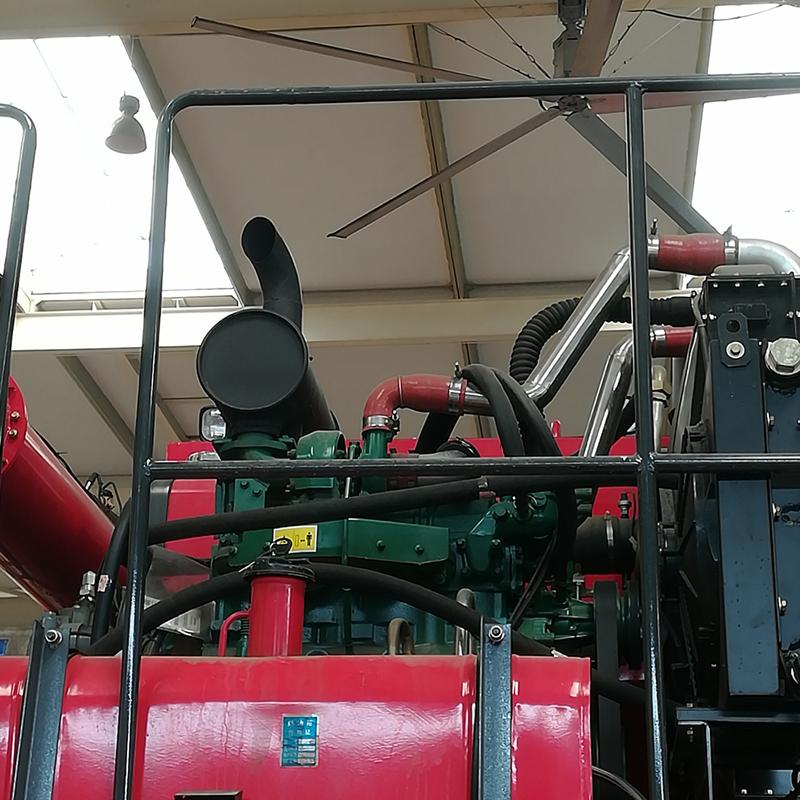

- With an 800 series hydraulic front axle, the walking speed can be adjusted in three gears. It also comes equipped with a power engine of 160 horsepower.
- Longitudinal single axial flow rasp-bar cylinder has a diameter of 610mm, which can keep high quality threshing under different crops and harvesting conditions.
- The electronic control handle integrates the hydraulic control system, the lifting of cutter head/reel and expansion of the grain unloader as one-handle operating, which is comfortable and convenient.
- The vibrosieve has a sieve box of 2.77O super-large cleaning area. And with dual anisotropic vibration, the whole machine has low vibration to ensure grain cleanliness.
- Volute fan with 12 blades can meet the demands of different crops and operating conditions, and improve the cleaning and grading effect.
- The 280L large oil tank, 2.8 cubic large grain tank and high unloading height of 4.2m increase the efficiency.
- High-end LCD can monitor the system operating condition in real time and display the alarm message. It can also directly find the troubleshooting method to maintain components, increasing the efficiency.
