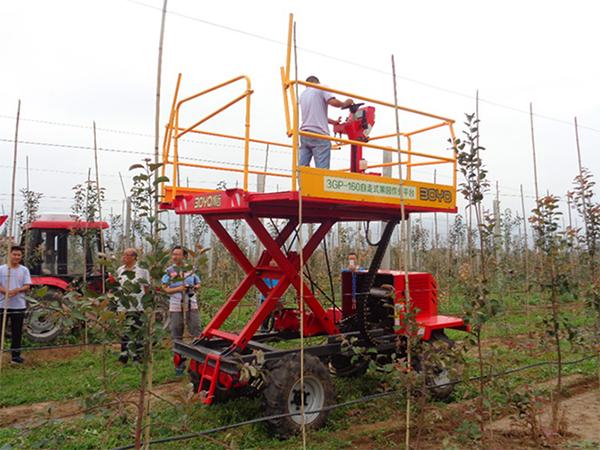

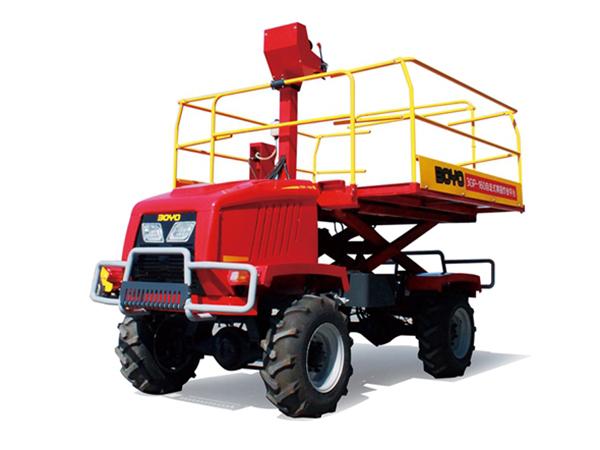

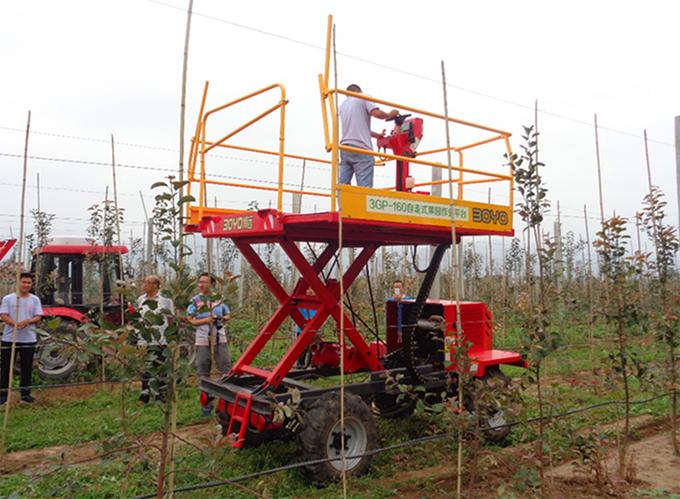

The 3GP-160 low-speed vehicle orchard platform is a multifunctional platform that features a full hydraulic system, compact structure, flexible operation and a small turning radius. The lifting height and the movement of left and right extension are all hydraulically controlled.

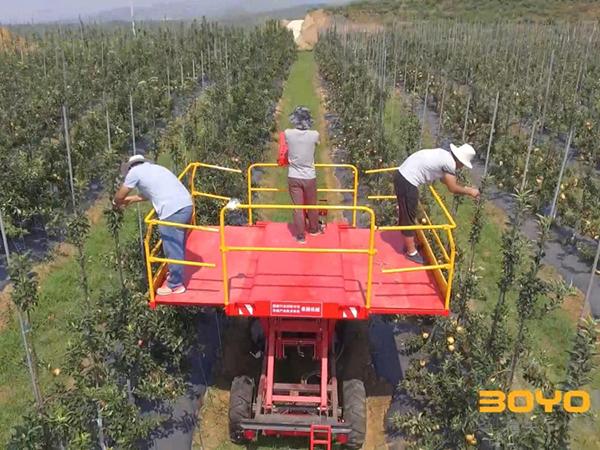

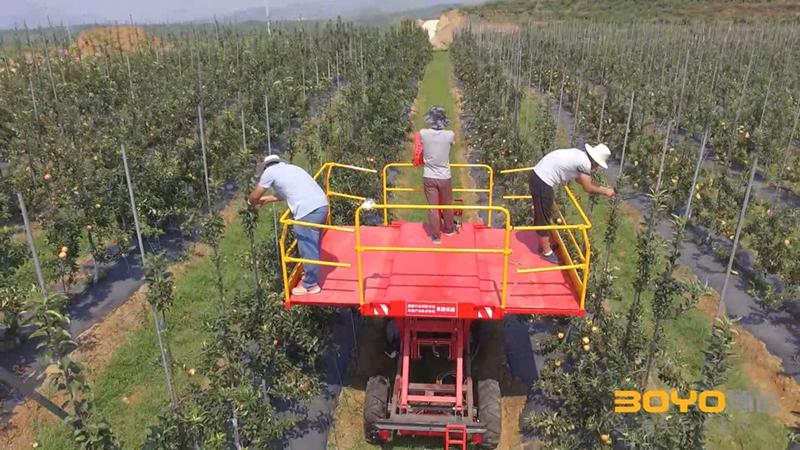

This orchard platform is not only used in fruit picking, but also flow thinning, fruit thinning, bagging, pruning and more. The platform not only enhances the working efficiency, but also improves operator safety, thus making it ideal for use in orchards of all different types.
|Overall size (L×W×H)||mm||3300×1600×2300|
|Min. turning radius||m||Left turn:4.2 Right turn: 4.1|
|Initial platform height (ground clearance)||mm||1050|
|Max. Lifting height (ground clearance)||mm||2200|
|Max. Horizontal extension width||mm||3000|
