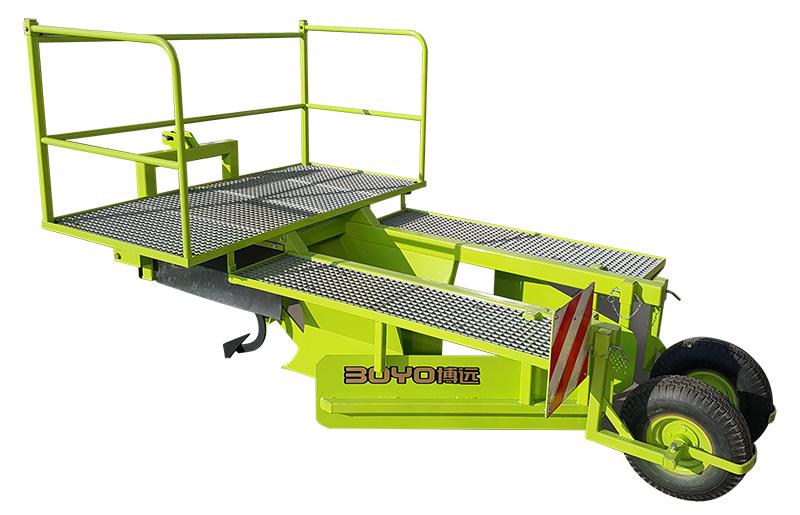

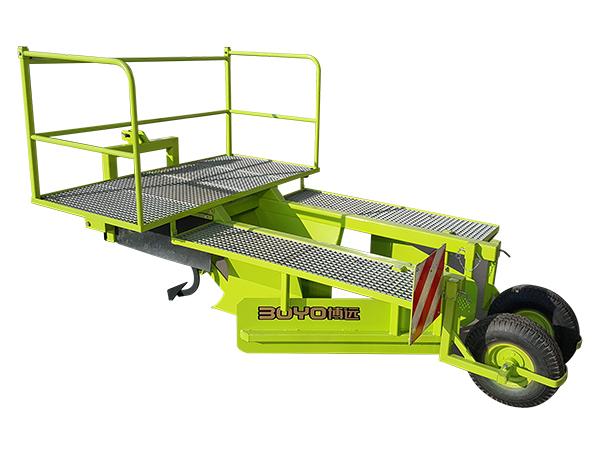

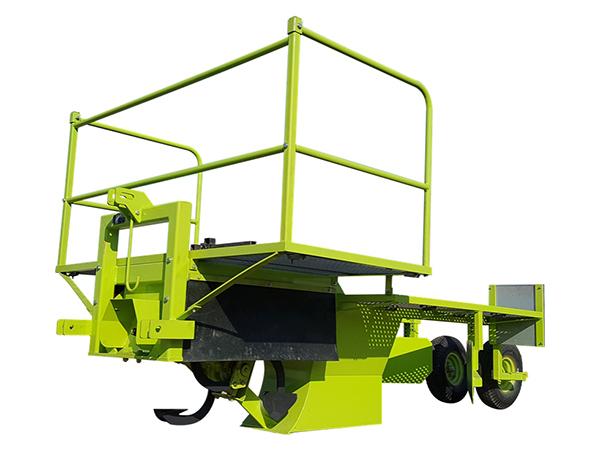

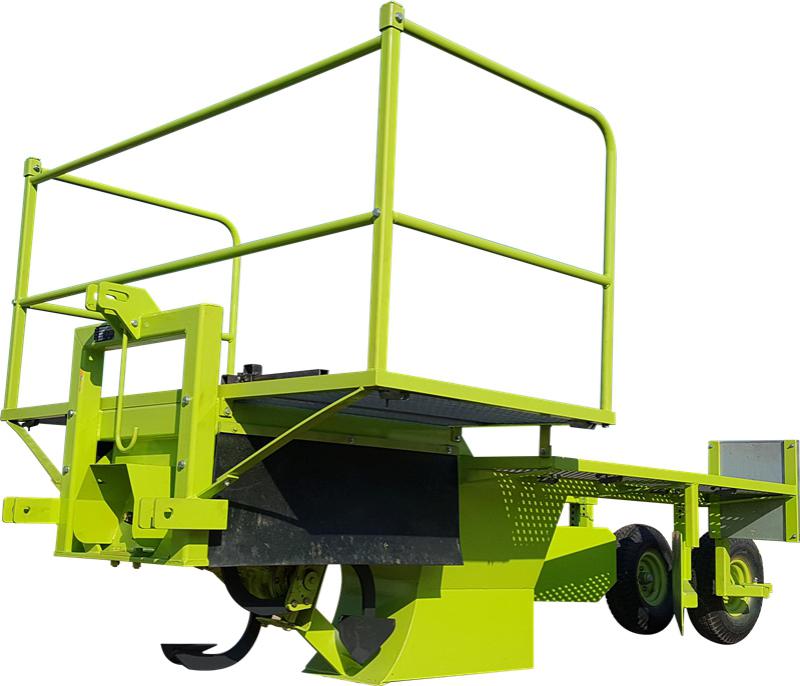

The PL-30 tree planting machine is easily paired with a 65+ horsepower tractor. It is applicable for planting seedlings in both tilled and untilled soil, with an efficiency of 5,000 to 8,000 trees an hour.

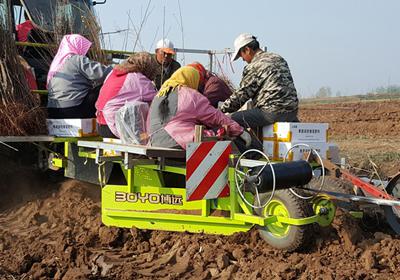

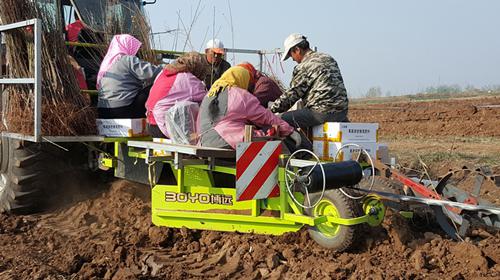

This tree planting machine combines ditching, sapling planting, mulching and compacting processes in order to efficiently complete tree planting. Equipped with a ditching gearbox assembly and ditching cutter, this machine has a strong adaptability to soil texture and can plant annual, biennial and triennial trees.
Item | Unit | PL-30 |
Overall size (L×W×H) | mm | 3400×2000×1800 |
Matching power | horsepower | >65 |
Ditching width | mm | 300 |
Max. ditching depth | mm | 300 |
Row spacing | mm | 500-2000 |
Working efficiency | Tree /8 hours | 5000-8000 |
Unload weight | kg | 670 |
Walking speed | km/h | 1-3 |
|
