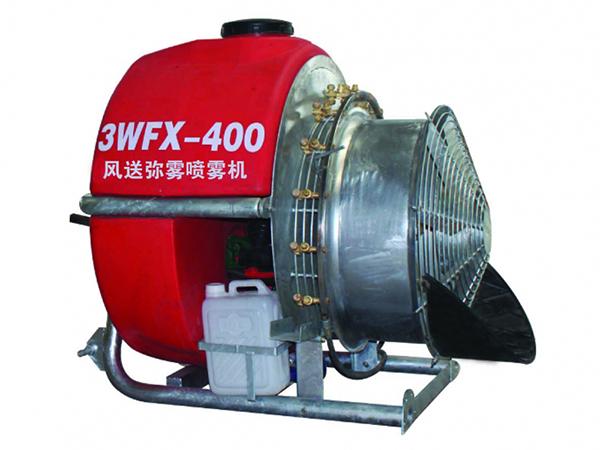

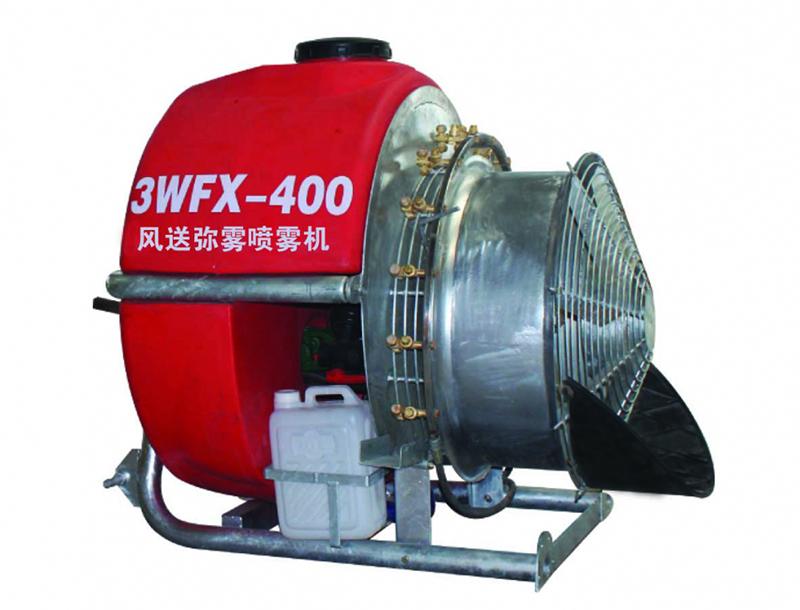

The 3WFX-400 air blast sprayer can be used in conjunction with a 40-100 horsepower tractor, and features a reasonable structure to meet the requirements of various spraying operations.
This air blast sprayer has 12 nozzles, giving it a high spraying efficiency. In addition, the air inlet is equipped with a balance guiding device with uniform spraying, strong penetrability and no deposition of pesticide chemical.
|Pesticide tank volume||L||400||600|
|Pesticide tank material||PE plastics||PE plastics|
|Diaphragm pump displacement||L/min||79-75||75|
|Axial fan diameter||mm||710||810|
|Horizontal range (one-sided)||m||6-8||6-8|
|Overall size (L×W×H)||mm||1450×1135×1240||1450×1200×1350|
| || |
